ZA STUDENA TAŽENÁ OCEL

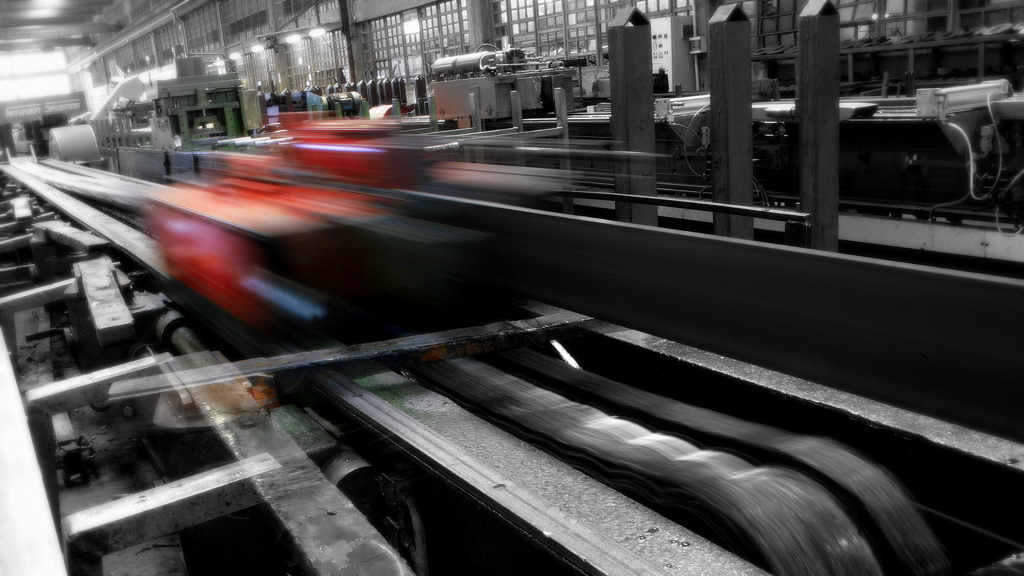

The COLD-DRAWN PRODUCTS offered by Trafital are obtained by processing from rolls or bars. Flat and square drawn products are normally supplied with sharp edges and in their natural state, it is also possible to supply the products with specific heat treatment of stress relief, annealing, normalization and quenched and tempered condition . The commercial length of the bars is 3 or 6 m and fixed lengths can be supplied upon request. Trafital offers the possibility of supplying special profiles, rounded, rounded and shaped. The carbon steels normally available are structural or construction types, free-cutting steels and tempered steels. On request it is possible to supply the bars in other steel qualities. Some of the steels available for flat, square, round and hexagonal drawn plates: Structural or construction steels: S235JR / S275JR / S355J2 Free cutting steels: 11SMn30 / 11SMn37 / 11SMnPb30 / 11SMnPb37 Tempered steels: C45 / 39NiCrMo3 / 42CrMo4 On request it is possible to supply the drawn bars in other steel qualities.
S235JR (Fe 360 B, St 37, E24, ASTM A36) ocelové tyče
Available profiles

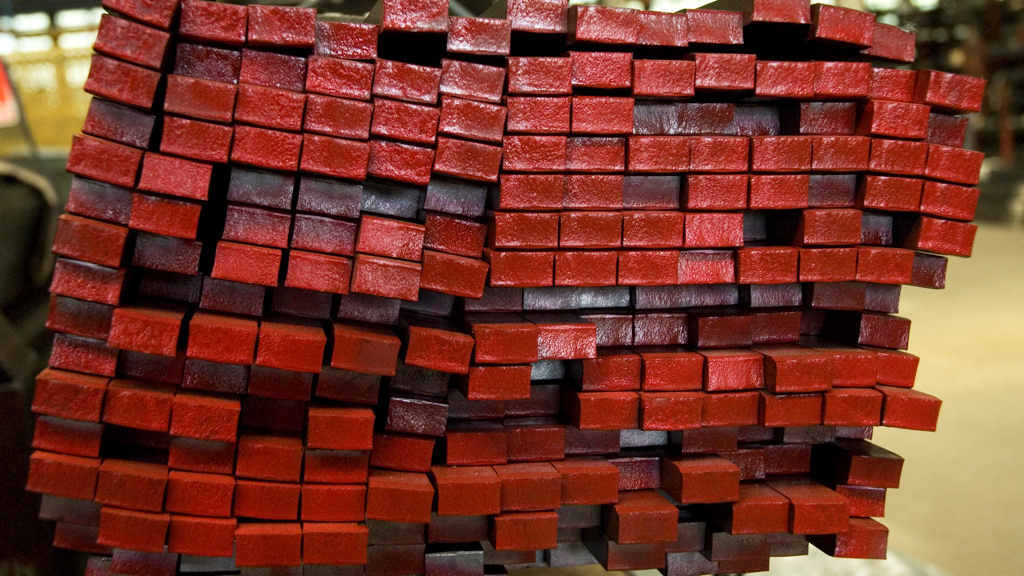

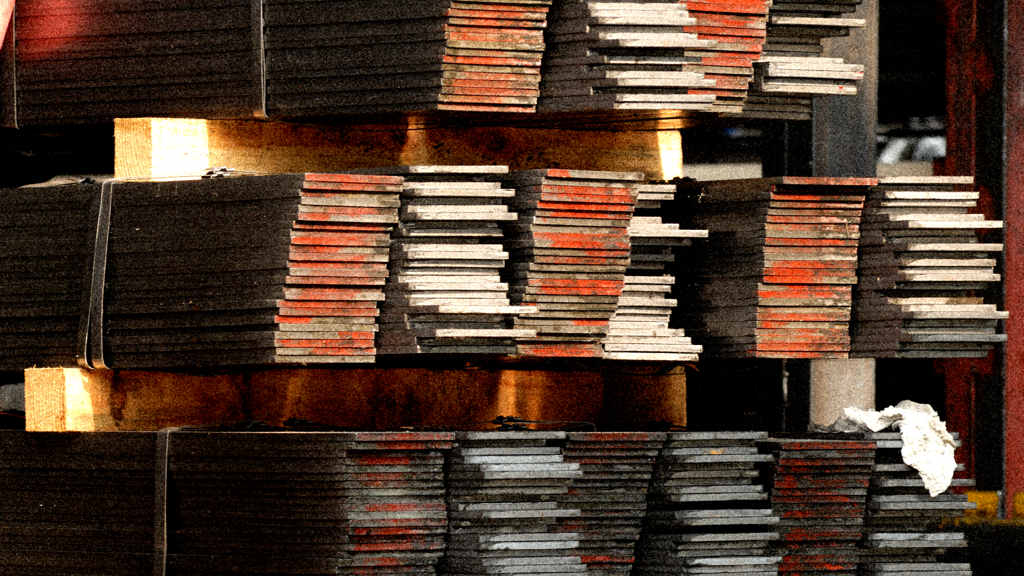

PLOCHÁ: ploché ocelové tyče od 4 x 2 mm do 500 x 40 mm (tloušťka do 100 mm)

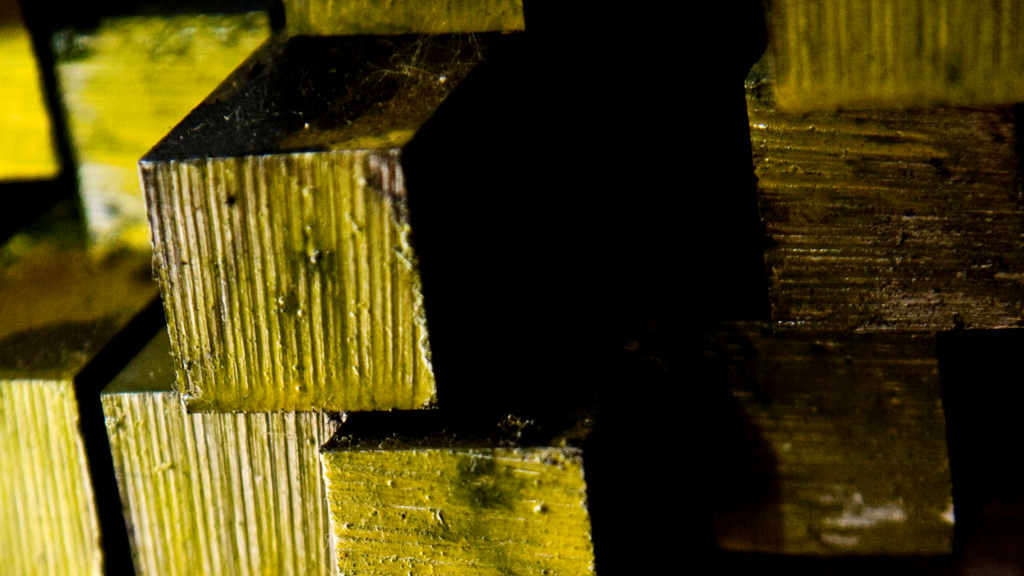

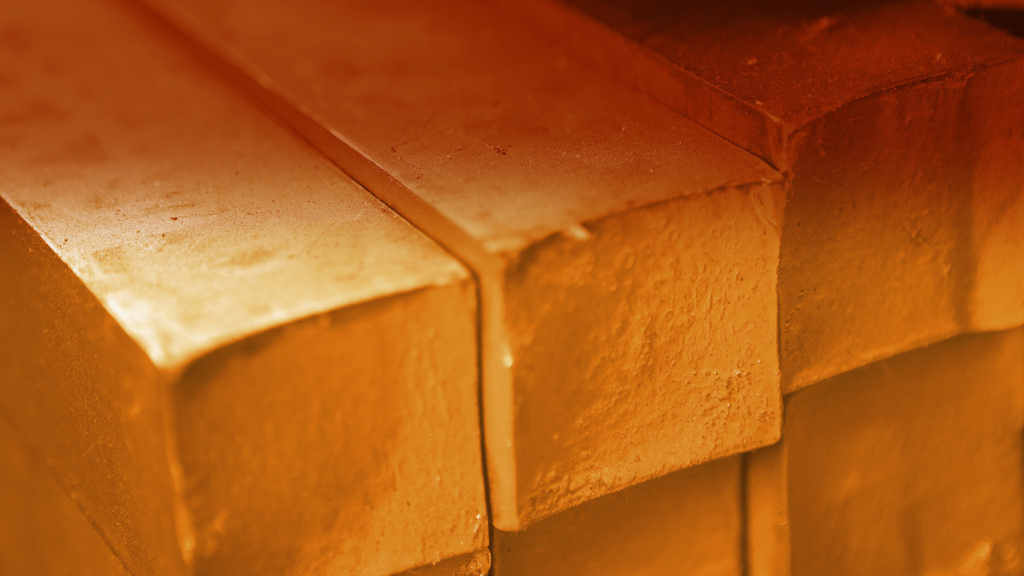

ČTVEREC: od 3 x 3 mm do 150 x 150 mm (nad 150 x 150 a do 250 x 250 také frézované)

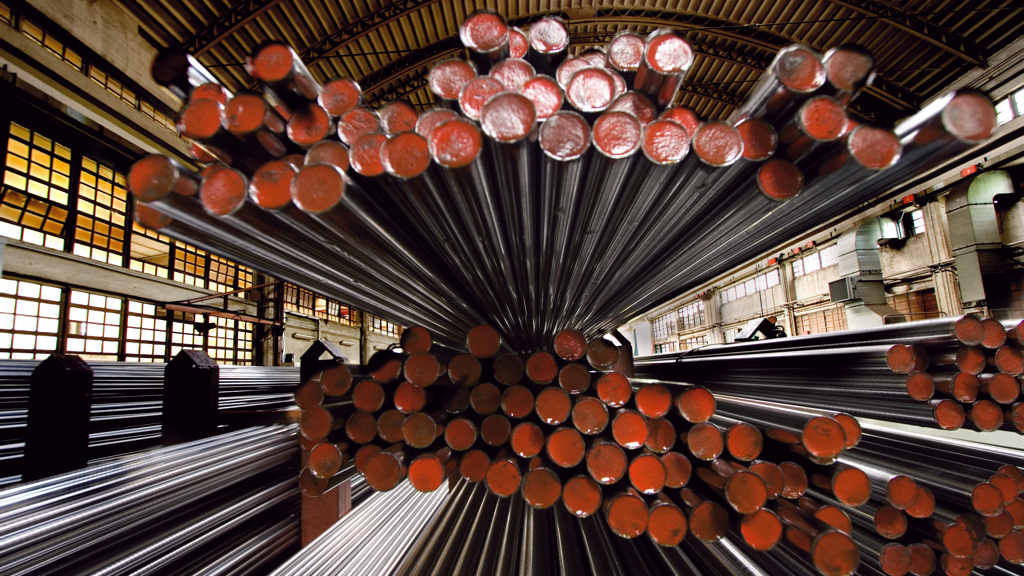

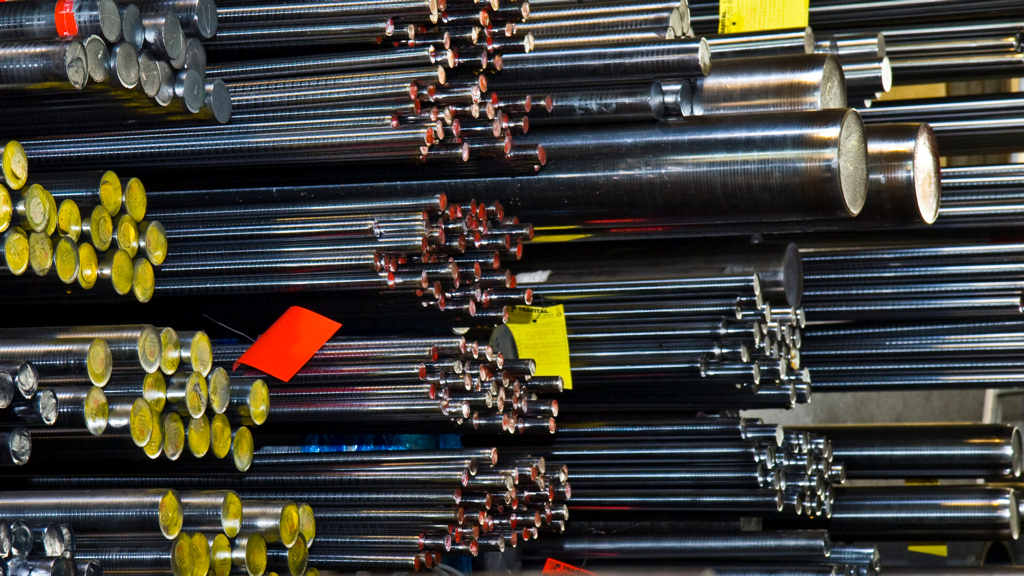

KULATINA: 2 mm do 160 mm (rovněž také loupané a korigované tyče nad 30 mm)

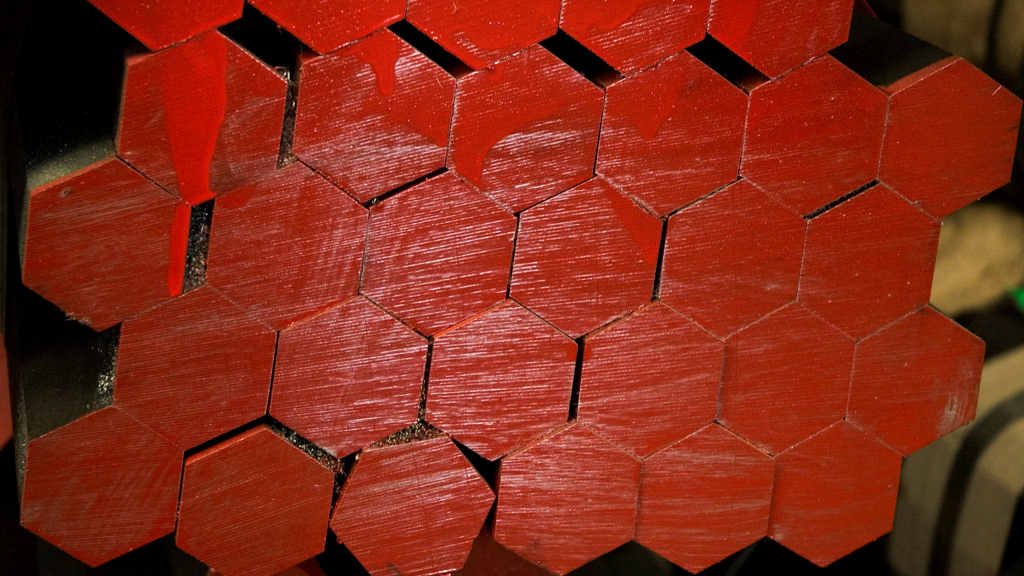

ŠESTIHRAN: od 4 mm do 100 mm

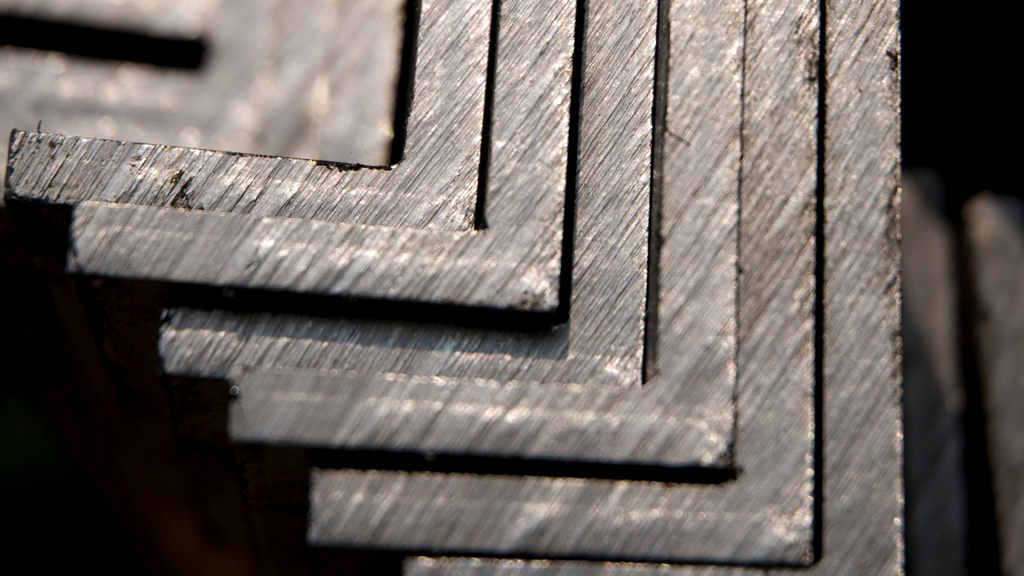

ÚHELNÍKY: od 10 x 10 x 2 mm do 100 x 100 x 10 mm
L-PROFIL: od 25 x 15 x 3 mm do 100 x 50 x 10 mm
T-PROFIL: od 20 x 20 x 3 mm do 79 x 79 x 9 mm (pouze na žádost)Specifications
Acciaio S235JR (ex Fe360 B) - Steel S235JR
COMPOSIZIONE CHIMICA - CHEMICAL COMPOSITION (EN 10277-2:2008)
| C% | Si% | Mn% | P% | S% | N% | Cu% | |
| Min | - | - | - | - | - | - | - |
| Max | 0.17 | - | 1.40 | 0.040 | 0.040 | 0.012 | 0.55 |
CARATTERISTICHE MECCANICHE TRAFILATO +C - COLD-DRAWN MECHANICAL PROPERTIES +C (EN 10277-2:2008)
| Spessore - Thickness mm. | Rp0,2 min. N/mm2 | Rm (MinMax) N/mm2 | A% Min |
| ≥5≤10 | 355 | 470840 | 8 |
| >10≤16 | 300 | 420770 | 9 |
| >16≤40 | 260 | 390730 | 10 |
| >40≤63 | 235 | 380670 | 11 |
| >63≤100 | 215 | 360640 | 11 |
C 45 (CK 45, XC 48, ASTM A29 grade 1045) ocelové tyče
Available profiles
PLOCHÁ: ploché ocelové tyče od 8 x 7 mm do 250 x 30 mmČTVEREC: 5 x 5 mm do 130 x 130 mm (nad 130 x 130 a do 250 x 250 také frézované)KULATINA: od 2 mm do 160 mm (rovnež také loupané a korigované tyče nad 20 mm)ŠESTIHRAN: od 6 mm do 100 mm

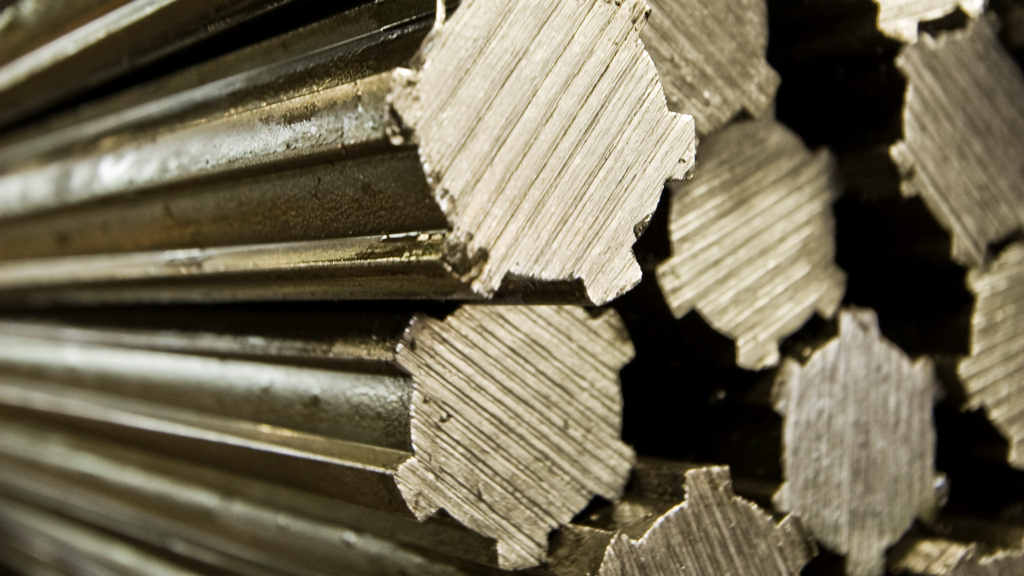

DRÁŽKOVÁ HŘÍDEL: ocelové drážkové hřídele od 14 x 11 mm do 48 x 42 mmSpecifications
Acciaio C45 - Steel C45
COMPOSIZIONE CHIMICA - CHEMICAL COMPOSITION (EN 10083-2:2006)
| C% | Si% | Mn% | P% | S% | Cr% | Mo% | Ni% | Cr+Mo+Ni% | |
| Min | 0.42 | - | 0.50 | - | - | - | - | - | - |
| Max | 0.50 | 0.40 | 0.80 | 0.045 | 0.045 | 0.40 | 0.10 | 0.40 | 0.63 |
CARATTERISTICHE MECCANICHE TRAFILATO +C - COLD-DRAWN MECHANICAL PROPERTIES +C (EN 10277-5:2008)
| Spessore - Thickness mm. | Rp0,2 min. N/mm2 | Rm (MinMax) N/mm2 | A% Min |
| ≥5≤10 | 565 | 7501050 | 5 |
| >10≤16 | 500 | 7101030 | 6 |
| >16≤40 | 410 | 6501000 | 7 |
| >40≤63 | 360 | 630900 | 8 |
| >63 | 310 | 580850 | 8 |
C 45 (CK 45, XC 48, ASTM A29 grade 1045) ocelové tyče na pera
Available profiles

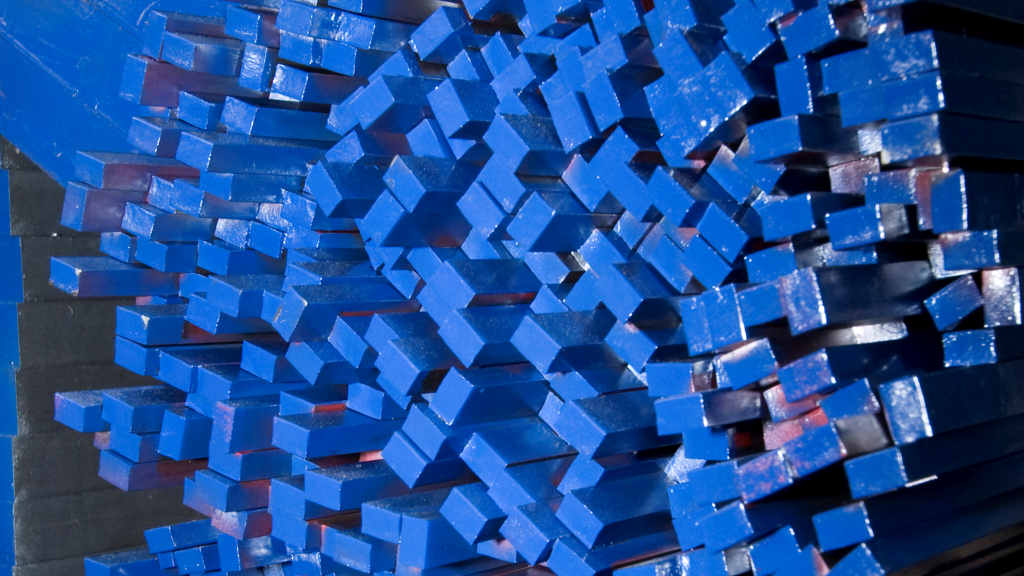

PLOCHÁ: ploché ocelové tyče od 8 x 7 mm do 100 x 50 mm (tolerance h9 x h11)ČTVEREC: od 6 x 6 mm do 90 x 90 mm (tolerance h9 x h9)Specifications
Acciaio C45 - Steel C45
COMPOSIZIONE CHIMICA - CHEMICAL COMPOSITION (EN 10083-2:2006)
| C% | Si% | Mn% | P% | S% | Cr% | Mo% | Ni% | Cr+Mo+Ni% | |
| Min | 0.42 | - | 0.50 | - | - | - | - | - | - |
| Max | 0.50 | 0.40 | 0.80 | 0.045 | 0.045 | 0.40 | 0.10 | 0.40 | 0.63 |
CARATTERISTICHE MECCANICHE TRAFILATO +C - COLD-DRAWN MECHANICAL PROPERTIES +C (EN 10277-5:2008)
| Spessore - Thickness mm. | Rp0,2 min. N/mm2 | Rm (MinMax) N/mm2 | A% Min |
| ≥5≤10 | 565 | 7501050 | 5 |
| >10≤16 | 500 | 7101030 | 6 |
| >16≤40 | 410 | 6501000 | 7 |
| >40≤63 | 360 | 630900 | 8 |
| >63 | 310 | 580850 | 8 |
39 Ni Cr Mo 3 tvrzené a kalené ocelové tyče z legované oceli
Specifications
Acciaio 39 Ni Cr Mo 3 - Steel 39 Ni Cr Mo 3
COMPOSIZIONE CHIMICA - CHEMICAL COMPOSITION (EN 10277-5:2008)
| C% | Si% | Mn% | P% | S% | Cr% | Mo% | Ni% | |
| Min | 0.35 | - | 0.50 | - | - | 0.60 | 0.15 | 0.70 |
| Max | 0.43 | 0.40 | 0.80 | 0.025 | 0.035 | 1.00 | 0.25 | 1.00 |
CARATTERISTICHE MECCANICHE LAMINATO ALLO STATO BONIFICATO +AR+QT - HOT ROLLED MECHANICAL PROPERTIES +AR+QT (EN 10083-3:2006)
| Diametro - Diameter mm. |
Spessore - Thickness mm. |
Rp 0,2 min. N/mm2 |
Rm (MinMax) N/mm2 |
A% Min |
KV Min J |
Z% Min |
| ≤16 | ≤8 | 785 | 9801180 | 11 | - | 40 |
| >16≤40 | >8≤20 | 735 | 9301130 | 11 | 35 | 40 |
| >40≤100 | >20≤60 | 685 | 8801080 | 12 | 40 | 45 |
| >100≤160 | >60≤100 | 635 | 830980 | 12 | 40 | 50 |
| >160≤250 | >100≤160 | 540 | 740880 | 13 | 40 | 50 |
Na základě žádosti Klienta jsme rovněž schopni vyrobit:
- Zvláštní profily z tažené oceli
- Plochou taženou ocelovou tyč s oblými hranami
- Ocelové tyče na výrobu ozubení
- Speciální rozměry
